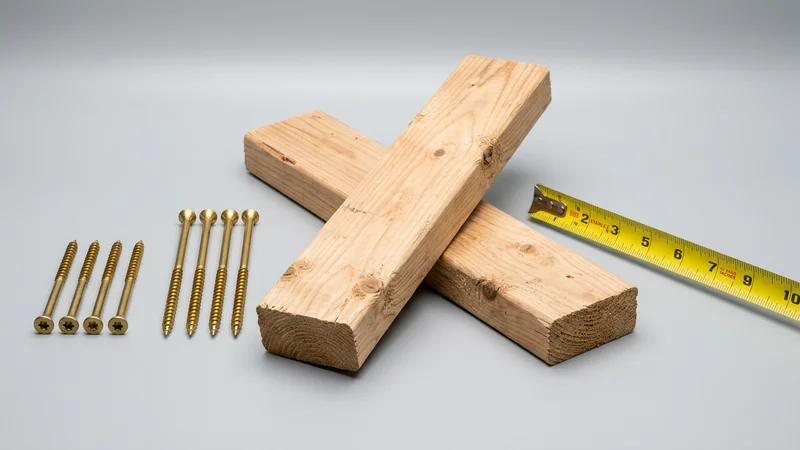

What Size Screws for 2x4 Framing
A 2x4 is 1-1/2 in thick, so the screw must cross one board and bite deep into the next: #9 x 2-1/2 in construction screws for face-to-face joints, 3 to 3-1/2 in for face-to-end. Nails still rule load-bearing framing — screws are for non-structural joining, blocking, and shop projects.
What to Look For
- Face-to-face: 2-1/2 in — crosses 1-1/2 in and bites 1 in.
- Face-to-end (end grain): 3 to 3-1/2 in — end grain needs extra bite.
- #9 or #10 gauge — #8 bends in framing lumber.
- Structural screws (not drywall) for anything load-adjacent.
- Two screws minimum per joint — one screw pivots.
Top Picks
1. GRK R4 #9 x 2-1/2 in multipurpose screws Best overall
The 2x4 default — bites without splitting, Torx drive, no pilot in SPF lumber.
Check price on Amazon →2. Simpson Strong-Tie SDWS 3-1/2 in structural screws Structural
Code-listed structural screws for ledgers, posts, and beams — replaces lags with no pre-drilling.
Check price on Amazon →3. Hillman #9 x 3 in gold construction screws (bulk) Best value
Contractor boxes for stud walls, blocking, and shop jigs — pennies per screw.
Check price on Amazon →What to Avoid
Avoid
- Drywall screws in framing — brittle, snap under shear, zero structural rating.
- 2-in screws face-to-face — only 1/2-in bite, joints loosen.
- Screws in load-bearing framing without a listed spec — nails carry the shear ratings.
Also in the toolbox
- 20V impact driver kit — sinks 3-in screws all day without wrist damage
- Speed square — marks square cuts so joints actually meet
FAQ
Can you frame a wall with screws instead of nails?
Non-load-bearing walls, yes — #9 x 2-1/2 in construction screws work fine. Load-bearing framing generally requires nails per code, because nails have the tested shear values; if you want screws structurally, use code-listed structural screws (GRK RSS, Simpson SDWS) to the manufacturer schedule — or ask your inspector first.
What about 2x6 walls — different screw size?
Same lengths — 2x6s share the 1-1/2-in thickness; only the width changes. Use the same 2-1/2-in face-to-face screws, just more of them across the wider face.
Why not drywall screws for framing?
Drywall screws are hardened for gypsum, not lumber: they snap under shear loads, their bugle heads bury weak in wood, and they carry no structural rating. They are the most common — and most dangerous — framing shortcut.
